RUPHG : 2.5 Mod Ground Helical Pinions
RUPHG2.5-70LPH-K
RUPHG2.5-70LPH-K

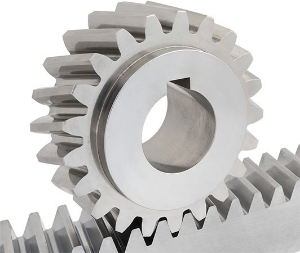

2.5 Module 17-4PH Stainless Steel (38-40HRC) 19°31'42" Left Hand Helix Ground Rack Helical Pinion 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)
Product specifications
Mating Rack
1HR16R025...H
Material
17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN3967
4f24
Normal Module mn
2.5
Gear Tooth Type
Spur Ground
Pressure Angle
20°
No. of Teeth [z]
70
Ref. Diameter [d]
185.681
Bore Diameter [di] H6
25
Tip Diameter [da]
190.681
Keyway [K] DIN 6885-1 Js9
8 x 7
Hub Length [L]
5
Hub Diameter [BD] h7
100
Face Width [F]
29
Backlash (mm) jt.i (min)
0.028
Backlash (mm) jt.e (max)
0.110
Inertia [I] kgm²
2.69 x 10-2
Mass kg
6.536
Specifications
Technical
Overview
Product specifications
Mating Rack
1HR16R025...H
Material
17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN3967
4f24
Normal Module mn
2.5
Gear Tooth Type
Spur Ground
Pressure Angle
20°
No. of Teeth [z]
70
Ref. Diameter [d]
185.681
Bore Diameter [di] H6
25
Tip Diameter [da]
190.681
Keyway [K] DIN 6885-1 Js9
8 x 7
Hub Length [L]
5
Hub Diameter [BD] h7
100
Face Width [F]
29
Backlash (mm) jt.i (min)
0.028
Backlash (mm) jt.e (max)
0.110
Inertia [I] kgm²
2.69 x 10-2
Mass kg
6.536
