RUPHG2.5-65LPH-K

RUPHG2.5-65LPH-K

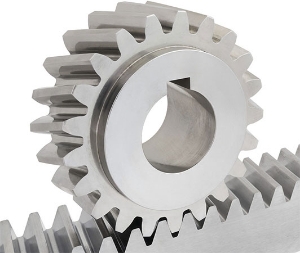

2.5 Module 17-4PH Stainless Steel (38-40HRC) 19°31'42" Left Hand Helix Ground Rack Helical Pinion 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Product specifications

Mating Rack1HR16R025...H
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Normal Module mn2.5
Gear Tooth TypeSpur Ground
Pressure Angle20°
No. of Teeth [z]65
Ref. Diameter [d]172.418
Tip Diameter [da]177.418
Bore Diameter [di] H620
Keyway [K] DIN 6885-1 Js96 x 6
Hub Diameter [BD] h7100
Hub Length [L]5
Face Width [F]29
Backlash (mm) jt.i (min)0.028
Backlash (mm) jt.e (max)0.110
Inertia [I] kgm²2.02 x 10-2
Mass kg5.751

Product specifications

Mating Rack1HR16R025...H
Material17-4PH (EN1.4542 AISI 630) Stainless Steel H1025
Quality DIN 3961 DIN39674f24
Normal Module mn2.5
Gear Tooth TypeSpur Ground
Pressure Angle20°
No. of Teeth [z]65
Ref. Diameter [d]172.418
Tip Diameter [da]177.418
Bore Diameter [di] H620
Keyway [K] DIN 6885-1 Js96 x 6
Hub Diameter [BD] h7100
Hub Length [L]5
Face Width [F]29
Backlash (mm) jt.i (min)0.028
Backlash (mm) jt.e (max)0.110
Inertia [I] kgm²2.02 x 10-2
Mass kg5.751
