BLHI40-2

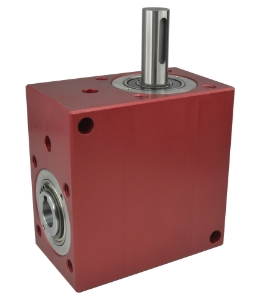

Spiral Bevel Gearbox bore or shaft input and output compact design made by Ondrives Precision Gears and Gearboxes

BLHI40-2

Spiral Bevel Gearbox Bore Input 1 Shaft Output, ≤45' backlash, 10mm shafts, 3.00Nm-8.00Nm output torque, ratio 2:1
Spiral Bevel Gearbox bore or shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Spiral Bevel Gearbox bore or shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Spiral Bevel Gearbox bore or shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel Gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel Gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]2:1
Output Torque T₂n [Nm]4.00
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.9
Max. Input Radial Load Fr1 N60
Max. Output Radial Load Fr2 N60
Max. Output Axial Load Fa2 N50
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]2:1
Output Torque T₂n [Nm]4.00
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.9
Max. Input Radial Load Fr1 N60
Max. Output Radial Load Fr2 N60
Max. Output Axial Load Fa2 N50
Lubrication GreaseShell Gadus S2 V220AD 2
