Home
Gearboxes & Reducers
Spiral Bevel Gearboxes

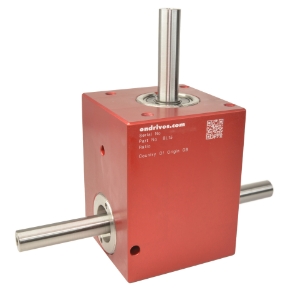

BL15-XH-2
BL15-XH-2
T-shape right angled drive, 12mm shafts, 2.2Nm-5.8Nm output torque, ratio 2:1. Spiral Bevel Bevels.
Product specifications
Gear Ratio [i=]
2:1
Output Torque T₂n [Nm]
2.40
Output Backlash j
≤0.75°
Efficiency n1 1000 r/min [ηz]
88%
Dimension [A]
105
Mass [kg]
1.75
Lubrication Grease
Shell Gadus S2 V220AD 2
Specifications
Technical
Overview
Product specifications
Gear Ratio [i=]
2:1
Output Torque T₂n [Nm]
2.40
Output Backlash j
≤0.75°
Efficiency n1 1000 r/min [ηz]
88%
Dimension [A]
105
Mass [kg]
1.75
Lubrication Grease
Shell Gadus S2 V220AD 2
