UCFL218

Ondrives Precision Gears and Gearboxes Part number UCFL218

UCFL218

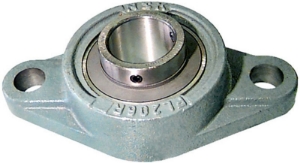

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL218 Ondrives Precision Gears and Gearboxes Part number UCFL218

Product specifications

Shaft Diameter90
Dimension [k] [H]320
Dimension [J]265
Dimension [A2]40
Dimension [A1]24
Dimension [A]68
Dimension [N]25
Dimension [L]205
Dimension [A3]96.3
Dimension [B]96
Dimension [S]39.7
Bolt SizeM22
Dynamic Load Rating [N]96000
Static Load Rating [N]71500
Mass [kg]11

Product specifications

Shaft Diameter90
Dimension [k] [H]320
Dimension [J]265
Dimension [A2]40
Dimension [A1]24
Dimension [A]68
Dimension [N]25
Dimension [L]205
Dimension [A3]96.3
Dimension [B]96
Dimension [S]39.7
Bolt SizeM22
Dynamic Load Rating [N]96000
Static Load Rating [N]71500
Mass [kg]11
