UCFL215

Ondrives Precision Gears and Gearboxes Part number UCFL215

UCFL215

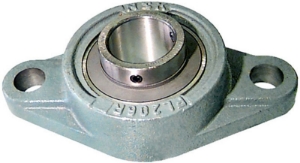

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL215 Ondrives Precision Gears and Gearboxes Part number UCFL215

Product specifications

Shaft Diameter75
Dimension [k] [H]275
Dimension [J]225
Dimension [A2]34
Dimension [A1]22
Dimension [A]56
Dimension [N]23
Dimension [L]165
Dimension [A3]78.5
Dimension [B]77.8
Dimension [S]33.3
Bolt SizeM20
Dynamic Load Rating [N]66000
Static Load Rating [N]49500
Mass [kg]6

Product specifications

Shaft Diameter75
Dimension [k] [H]275
Dimension [J]225
Dimension [A2]34
Dimension [A1]22
Dimension [A]56
Dimension [N]23
Dimension [L]165
Dimension [A3]78.5
Dimension [B]77.8
Dimension [S]33.3
Bolt SizeM20
Dynamic Load Rating [N]66000
Static Load Rating [N]49500
Mass [kg]6
