UCFL214

Ondrives Precision Gears and Gearboxes Part number UCFL214

UCFL214

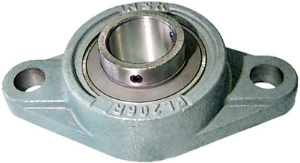

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL214 Ondrives Precision Gears and Gearboxes Part number UCFL214

Product specifications

Shaft Diameter70
Dimension [k] [H]265
Dimension [J]216
Dimension [A2]31
Dimension [A1]22
Dimension [A]54
Dimension [N]23
Dimension [L]160
Dimension [A3]75.4
Dimension [B]74.6
Dimension [S]30.2
Bolt SizeM20
Dynamic Load Rating [N]62000
Static Load Rating [N]44000
Mass [kg]5.4
