UCFL213

Ondrives Precision Gears and Gearboxes Part number UCFL213

UCFL213

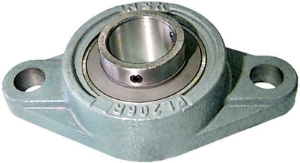

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL213 Ondrives Precision Gears and Gearboxes Part number UCFL213

Product specifications

Shaft Diameter65
Dimension [k] [H]258
Dimension [J]210
Dimension [A2]30
Dimension [A1]22
Dimension [A]50
Dimension [N]23
Dimension [L]155
Dimension [A3]69.7
Dimension [B]65.1
Dimension [S]25.4
Bolt SizeM20
Dynamic Load Rating [N]57500
Static Load Rating [N]40000
Mass [kg]4.8

Product specifications

Shaft Diameter65
Dimension [k] [H]258
Dimension [J]210
Dimension [A2]30
Dimension [A1]22
Dimension [A]50
Dimension [N]23
Dimension [L]155
Dimension [A3]69.7
Dimension [B]65.1
Dimension [S]25.4
Bolt SizeM20
Dynamic Load Rating [N]57500
Static Load Rating [N]40000
Mass [kg]4.8
