UCFL211

Ondrives Precision Gears and Gearboxes Part number UCFL211

UCFL211

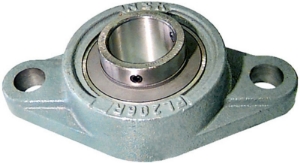

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL211 Ondrives Precision Gears and Gearboxes Part number UCFL211

Product specifications

Shaft Diameter55
Dimension [k] [H]224
Dimension [J]184
Dimension [A2]25
Dimension [A1]18
Dimension [A]43
Dimension [N]19
Dimension [L]130
Dimension [A3]58.4
Dimension [B]55.6
Dimension [S]22.2
Bolt SizeM16
Dynamic Load Rating [N]43500
Static Load Rating [N]29300
Mass [kg]2.9

Product specifications

Shaft Diameter55
Dimension [k] [H]224
Dimension [J]184
Dimension [A2]25
Dimension [A1]18
Dimension [A]43
Dimension [N]19
Dimension [L]130
Dimension [A3]58.4
Dimension [B]55.6
Dimension [S]22.2
Bolt SizeM16
Dynamic Load Rating [N]43500
Static Load Rating [N]29300
Mass [kg]2.9
