UCFL210

Ondrives Precision Gears and Gearboxes Part number UCFL210

UCFL210

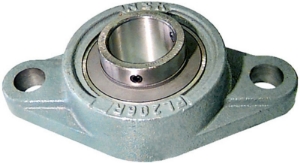

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL210 Ondrives Precision Gears and Gearboxes Part number UCFL210

Product specifications

Shaft Diameter50
Dimension [k] [H]197
Dimension [J]157
Dimension [A2]22
Dimension [A1]16
Dimension [A]40
Dimension [N]19
Dimension [L]115
Dimension [A3]54.6
Dimension [B]51.6
Dimension [S]19
Bolt SizeM16
Dynamic Load Rating [N]35000
Static Load Rating [N]23200
Mass [kg]2

Product specifications

Shaft Diameter50
Dimension [k] [H]197
Dimension [J]157
Dimension [A2]22
Dimension [A1]16
Dimension [A]40
Dimension [N]19
Dimension [L]115
Dimension [A3]54.6
Dimension [B]51.6
Dimension [S]19
Bolt SizeM16
Dynamic Load Rating [N]35000
Static Load Rating [N]23200
Mass [kg]2
