UCFL206

Ondrives Precision Gears and Gearboxes Part number UCFL206

UCFL206

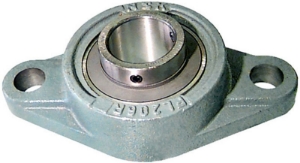

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL206 Ondrives Precision Gears and Gearboxes Part number UCFL206

Product specifications

Shaft Diameter30
Dimension [k] [H]148
Dimension [J]117
Dimension [A2]18
Dimension [A1]13
Dimension [A]31
Dimension [N]16
Dimension [L]80
Dimension [A3]40.2
Dimension [B]38.1
Dimension [S]15.9
Bolt SizeM14
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]0.9

Product specifications

Shaft Diameter30
Dimension [k] [H]148
Dimension [J]117
Dimension [A2]18
Dimension [A1]13
Dimension [A]31
Dimension [N]16
Dimension [L]80
Dimension [A3]40.2
Dimension [B]38.1
Dimension [S]15.9
Bolt SizeM14
Dynamic Load Rating [N]19500
Static Load Rating [N]11300
Mass [kg]0.9
