UCFL201-L

Ondrives Precision Gears and Gearboxes Part number UCFL201-L

UCFL201-L

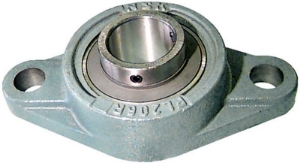

Cast Iron Rhombic Flange Ball Bearing Unit with Set Screws. 12 - 90mm Bores.
Ondrives Precision Gears and Gearboxes Part number UCFL201-L Ondrives Precision Gears and Gearboxes Part number UCFL201-L

Product specifications

Shaft Diameter12
Dimension [k] [H]113
Dimension [J]90
Dimension [A2]15
Dimension [A1]11
Dimension [A]25.5
Dimension [N]12
Dimension [L]60
Dimension [A3]33.3
Dimension [B]31
Dimension [S]12.7
Bolt SizeM10
Dynamic Load Rating [N]12800
Static Load Rating [N]6600
Mass [kg]0.45

Product specifications

Shaft Diameter12
Dimension [k] [H]113
Dimension [J]90
Dimension [A2]15
Dimension [A1]11
Dimension [A]25.5
Dimension [N]12
Dimension [L]60
Dimension [A3]33.3
Dimension [B]31
Dimension [S]12.7
Bolt SizeM10
Dynamic Load Rating [N]12800
Static Load Rating [N]6600
Mass [kg]0.45
