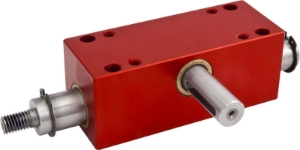

RPA16-25

Rack & Pinion

RPA16-25

Actuator box, 12mm input shaft, 16mm output shaft, 25mm stroke, 41.0Kg Load, 3.00Nm
Rack & Pinion Rack & Pinion

Product specifications

Output Backlash j≤2°
Output Shaft Diameter16
Input Shaft Ø12
Stroke25
Max. Torque Input at 100 Rpm Nm3.0
Max. Load Output (Kg)41
Angular Movement for 1mm Travel8.19°
Angular Movement for Standard Travel204.8°
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Output Backlash j≤2°
Output Shaft Diameter16
Input Shaft Ø12
Stroke25
Max. Torque Input at 100 Rpm Nm3.0
Max. Load Output (Kg)41
Angular Movement for 1mm Travel8.19°
Angular Movement for Standard Travel204.8°
Lubrication GreaseShell Gadus S5 V42P 2.5
