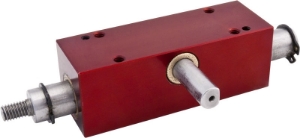

RPA12-20
RPA12-20
Actuator box, 8mm input shaft, 12mm output shaft, 20mm stroke, 17.0Kg Load, 0.64Nm
Product specifications
Output Backlash j
≤2°
Output Shaft Diameter
12
Input Shaft Ø
8
Stroke
20
Max. Torque Input at 100 Rpm Nm
0.64
Max. Load Output (Kg)
17
Angular Movement for 1mm Travel
11.93°
Angular Movement for Standard Travel
238.7°
Lubrication Grease
Shell Gadus S5 V42P 2.5
Specifications
Product PDF
Technical
Overview
Product specifications
Output Backlash j
≤2°
Output Shaft Diameter
12
Input Shaft Ø
8
Stroke
20
Max. Torque Input at 100 Rpm Nm
0.64
Max. Load Output (Kg)
17
Angular Movement for 1mm Travel
11.93°
Angular Movement for Standard Travel
238.7°
Lubrication Grease
Shell Gadus S5 V42P 2.5
