HNUQ850A3

Ondrives Precision Gears and Gearboxes Part number HNUQ850A3

HNUQ850A3

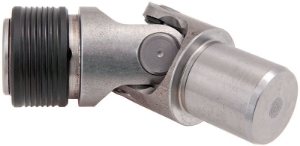

Single Steel Quick Release Needle Roller Universal Joint, Low Backlash with Stud End
Ondrives Precision Gears and Gearboxes Part number HNUQ850A3 Ondrives Precision Gears and Gearboxes Part number HNUQ850A3 Ondrives Precision Gears and Gearboxes Part number HNUQ850A3 Ondrives Precision Gears and Gearboxes Part number HNUQ850A3

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint - Stud End
Diameter [A]50
Diameter [D1]49.5
Dimension [L1]66
Dimension [b]132
Quick Release [a]20.5
Quick Release [f]23
Quick Release [e]10
Mass (g)1150
Diameter [d3] H725
Dimension [b] JS98
Dimension [t] +0.226.7
Dimension [X]0-34
Stud Dia. [y]25-50

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint - Stud End
Diameter [A]50
Diameter [D1]49.5
Dimension [L1]66
Dimension [b]132
Quick Release [a]20.5
Quick Release [f]23
Quick Release [e]10
Mass (g)1150
Diameter [d3] H725
Dimension [b] JS98
Dimension [t] +0.226.7
Dimension [X]0-34
Stud Dia. [y]25-50
