HNUQ820A3

Ondrives Precision Gears and Gearboxes Part number HNUQ820A3

HNUQ820A3

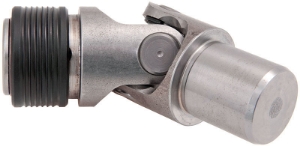

Single Steel Quick Release Needle Roller Universal Joint, Low Backlash with Stud End
Ondrives Precision Gears and Gearboxes Part number HNUQ820A3 Ondrives Precision Gears and Gearboxes Part number HNUQ820A3 Ondrives Precision Gears and Gearboxes Part number HNUQ820A3 Ondrives Precision Gears and Gearboxes Part number HNUQ820A3

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint - Stud End
Diameter [A]20
Diameter [D1]19.8
Dimension [L1]31
Dimension [b]62
Quick Release [a]11.5
Quick Release [f]8.7
Quick Release [e]3.95
Mass (g)80
Diameter [d3] H710
Dimension [b] JS93
Dimension [t] +0.211
Dimension [X]0-17
Stud Dia. [y]10-20

Product specifications

MaterialSteel 9 SMn Pb36K
Joint ConfigurationSingle Joint - Stud End
Diameter [A]20
Diameter [D1]19.8
Dimension [L1]31
Dimension [b]62
Quick Release [a]11.5
Quick Release [f]8.7
Quick Release [e]3.95
Mass (g)80
Diameter [d3] H710
Dimension [b] JS93
Dimension [t] +0.211
Dimension [X]0-17
Stud Dia. [y]10-20
