PPS1.5-24S

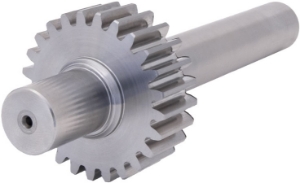

Ondrives Precision Gears and Gearboxes Part number PPS1.5-24S

PPS1.5-24S

1.5 Module 303 Stainless Steel Precision Pinion Shaft 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PPS1.5-24S Ondrives Precision Gears and Gearboxes Part number PPS1.5-24S

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]24
Torque T₂ [Nm] n1 100 r/min5.55
Ref. Diameter [d]36
Tip Diameter [da]39
Backlash (mm) jt.i (min)0.051
Backlash (mm) jt.e (max)0.129
Inertia [I] kgm²2.338 x 10-5
Mass [kg]0.273

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]24
Torque T₂ [Nm] n1 100 r/min5.55
Ref. Diameter [d]36
Tip Diameter [da]39
Backlash (mm) jt.i (min)0.051
Backlash (mm) jt.e (max)0.129
Inertia [I] kgm²2.338 x 10-5
Mass [kg]0.273
