ABPWG2.5-32-3

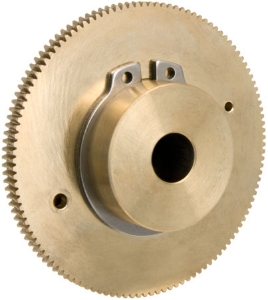

Ondrives Precision Gears and Gearboxes Part number ABPWG2.5-32-3

ABPWG2.5-32-3

2.5 Module Bronze CA104 3 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG2.5-32-3 Ondrives Precision Gears and Gearboxes Part number ABPWG2.5-32-3

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]32
Centre Distance [a]57.5
Axial Module mx2.5
Ref. Diameter [d]80
Pressure Angle20°
Wheel Throat [da2]85
Bore Diameter [di] H714
Hub Diameter [BD]45
Inertia [I] kgm²6.19 x 10-4
Mass [kg]1.218
Torque T₂ [Nm] n1 100 r/min3.13
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]32
Centre Distance [a]57.5
Axial Module mx2.5
Ref. Diameter [d]80
Pressure Angle20°
Wheel Throat [da2]85
Bore Diameter [di] H714
Hub Diameter [BD]45
Inertia [I] kgm²6.19 x 10-4
Mass [kg]1.218
Torque T₂ [Nm] n1 100 r/min3.13
Gear Tooth TypeWormwheel
