ABPWG1.5-60-2

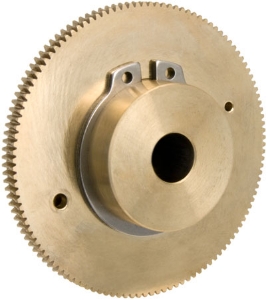

Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-60-2

ABPWG1.5-60-2

1.5 Module Bronze CA104 2 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-60-2 Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-60-2

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]60
Centre Distance [a]55
Axial Module mx1.5
Ref. Diameter [d]90
Pressure Angle20°
Wheel Throat [da2]93
Bore Diameter [di] H712
Hub Diameter [BD]45
Inertia [I] kgm²6.46 x 10-4
Mass [kg]0.886
Torque T₂ [Nm] n1 100 r/min1.55
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]2
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]60
Centre Distance [a]55
Axial Module mx1.5
Ref. Diameter [d]90
Pressure Angle20°
Wheel Throat [da2]93
Bore Diameter [di] H712
Hub Diameter [BD]45
Inertia [I] kgm²6.46 x 10-4
Mass [kg]0.886
Torque T₂ [Nm] n1 100 r/min1.55
Gear Tooth TypeWormwheel
