ABPWG1.5-42-1

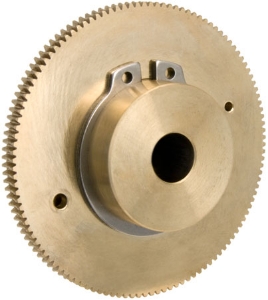

Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-42-1

ABPWG1.5-42-1

1.5 Module Bronze CA104 1 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-42-1 Ondrives Precision Gears and Gearboxes Part number ABPWG1.5-42-1

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]42
Centre Distance [a]41.5
Axial Module mx1.5
Ref. Diameter [d]63
Pressure Angle20°
Wheel Throat [da2]66
Bore Diameter [di] H710
Hub Diameter [BD]35
Inertia [I] kgm²1.50 x 10-4
Mass [kg]0.452
Torque T₂ [Nm] n1 100 r/min1.07
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]42
Centre Distance [a]41.5
Axial Module mx1.5
Ref. Diameter [d]63
Pressure Angle20°
Wheel Throat [da2]66
Bore Diameter [di] H710
Hub Diameter [BD]35
Inertia [I] kgm²1.50 x 10-4
Mass [kg]0.452
Torque T₂ [Nm] n1 100 r/min1.07
Gear Tooth TypeWormwheel
