ABPWG1.0-95-1

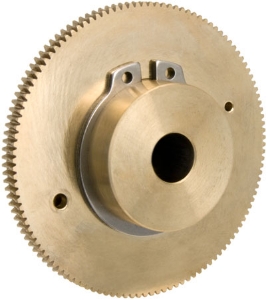

Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-95-1

ABPWG1.0-95-1

1.0 Module Bronze CA104 1 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-95-1 Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-95-1

Product specifications

Material Bronze CA104
Quality DIN 3974 DIN3967 7e25
No. of Starts worm [z1] 1
Lead Direction Right Hand
Worm Profile Zi
No. of Teeth [z] 95
Centre Distance [a] 55
Axial Module mx 1.0
Ref. Diameter [d] 95
Pressure Angle 20°
Wheel Throat [da2] 97
Bore Diameter [di] H7 12
Hub Diameter [BD] 45
Inertia [I] kgm² 5.62 x 10-4
Mass [kg] 0.666
Torque T₂ [Nm] n1 100 r/min 0.72
Gear Tooth Type Wormwheel
