ABPWG1.0-78-3
ABPWG1.0-78-3

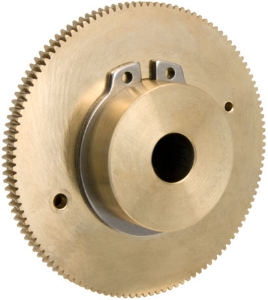

1.0 Module Bronze CA104 3 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Product specifications
Material
Bronze CA104
Quality DIN 3974 DIN3967
7e25
No. of Starts worm [z1]
3
Lead Direction
Right Hand
Worm Profile
Zi
No. of Teeth [z]
78
Centre Distance [a]
46.5
Axial Module mx
1.0
Ref. Diameter [d]
78
Pressure Angle
20°
Wheel Throat [da2]
80
Bore Diameter [di] H7
12
Hub Diameter [BD]
45
Inertia [I] kgm²
2.64 x 10-4
Mass [kg]
0.491
Torque T₂ [Nm] n1 100 r/min
0.63
Gear Tooth Type
Wormwheel
Specifications
Technical
Overview
Product specifications
Material
Bronze CA104
Quality DIN 3974 DIN3967
7e25
No. of Starts worm [z1]
3
Lead Direction
Right Hand
Worm Profile
Zi
No. of Teeth [z]
78
Centre Distance [a]
46.5
Axial Module mx
1.0
Ref. Diameter [d]
78
Pressure Angle
20°
Wheel Throat [da2]
80
Bore Diameter [di] H7
12
Hub Diameter [BD]
45
Inertia [I] kgm²
2.64 x 10-4
Mass [kg]
0.491
Torque T₂ [Nm] n1 100 r/min
0.63
Gear Tooth Type
Wormwheel
