  3. Precision Anti-Backlash Wormwheels

ABPWG1.0-120-3

Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-120-3

ABPWG1.0-120-3

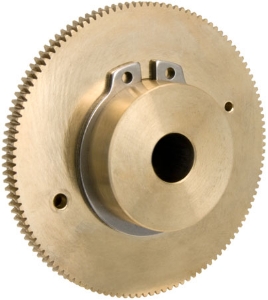

1.0 Module Bronze CA104 3 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e25 DIN 3974/3967
Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-120-3 Ondrives Precision Gears and Gearboxes Part number ABPWG1.0-120-3

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]120
Centre Distance [a]67.5
Axial Module mx1.0
Ref. Diameter [d]120
Pressure Angle20°
Wheel Throat [da2]122
Bore Diameter [di] H714
Hub Diameter [BD]65
Inertia [I] kgm²1.53 x 10-3
Mass [kg]1.137
Torque T₂ [Nm] n1 100 r/min0.95
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN39677e25
No. of Starts worm [z1]3
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]120
Centre Distance [a]67.5
Axial Module mx1.0
Ref. Diameter [d]120
Pressure Angle20°
Wheel Throat [da2]122
Bore Diameter [di] H714
Hub Diameter [BD]65
Inertia [I] kgm²1.53 x 10-3
Mass [kg]1.137
Torque T₂ [Nm] n1 100 r/min0.95
Gear Tooth TypeWormwheel
