ABPWG0.5-105-1

Ondrives Precision Gears and Gearboxes Part number ABPWG0.5-105-1

ABPWG0.5-105-1

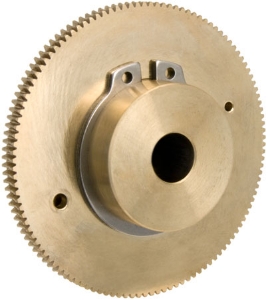

0.5 Module Bronze CA104 1 Start Precision Anti-Backlash Wormwheel 20° PA - Quality Grade 7e DIN 3974/58405
Ondrives Precision Gears and Gearboxes Part number ABPWG0.5-105-1 Ondrives Precision Gears and Gearboxes Part number ABPWG0.5-105-1

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN 584056e
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]105
Centre Distance [a]31.25
Axial Module mx0.5
Ref. Diameter [d]52.5
Pressure Angle20°
Wheel Throat [da2]53.5
Bore Diameter [di] H710
Hub Diameter [BD]30
Inertia [I] kgm²2.87 x 10-5
Mass [kg]0.127
Torque T₂ [Nm] n1 100 r/min0.47
Gear Tooth TypeWormwheel

Product specifications

MaterialBronze CA104
Quality DIN 3974 DIN 584056e
No. of Starts worm [z1]1
Lead DirectionRight Hand
Worm ProfileZi
No. of Teeth [z]105
Centre Distance [a]31.25
Axial Module mx0.5
Ref. Diameter [d]52.5
Pressure Angle20°
Wheel Throat [da2]53.5
Bore Diameter [di] H710
Hub Diameter [BD]30
Inertia [I] kgm²2.87 x 10-5
Mass [kg]0.127
Torque T₂ [Nm] n1 100 r/min0.47
Gear Tooth TypeWormwheel
