ABPSG1.5-62S

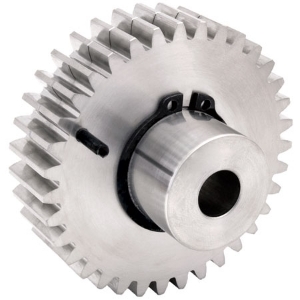

Ondrives Precision Gears and Gearboxes Part number ABPSG1.5-62S

ABPSG1.5-62S

1.5 Module 303 Stainless Steel Precision Anti-Backlash Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number ABPSG1.5-62S Ondrives Precision Gears and Gearboxes Part number ABPSG1.5-62S

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]62
Torque T₂ [Nm] n1 100 r/min1.59
Ref. Diameter [d]93
Tip Diameter [da]96
Bore Diameter [di] H712
Hub Diameter [BD]45
Inertia [I] kgm²7.72 x 10-4
Mass [kg]0.973

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn1.5
Pressure Angle20°
No. of Teeth [z]62
Torque T₂ [Nm] n1 100 r/min1.59
Ref. Diameter [d]93
Tip Diameter [da]96
Bore Diameter [di] H712
Hub Diameter [BD]45
Inertia [I] kgm²7.72 x 10-4
Mass [kg]0.973
