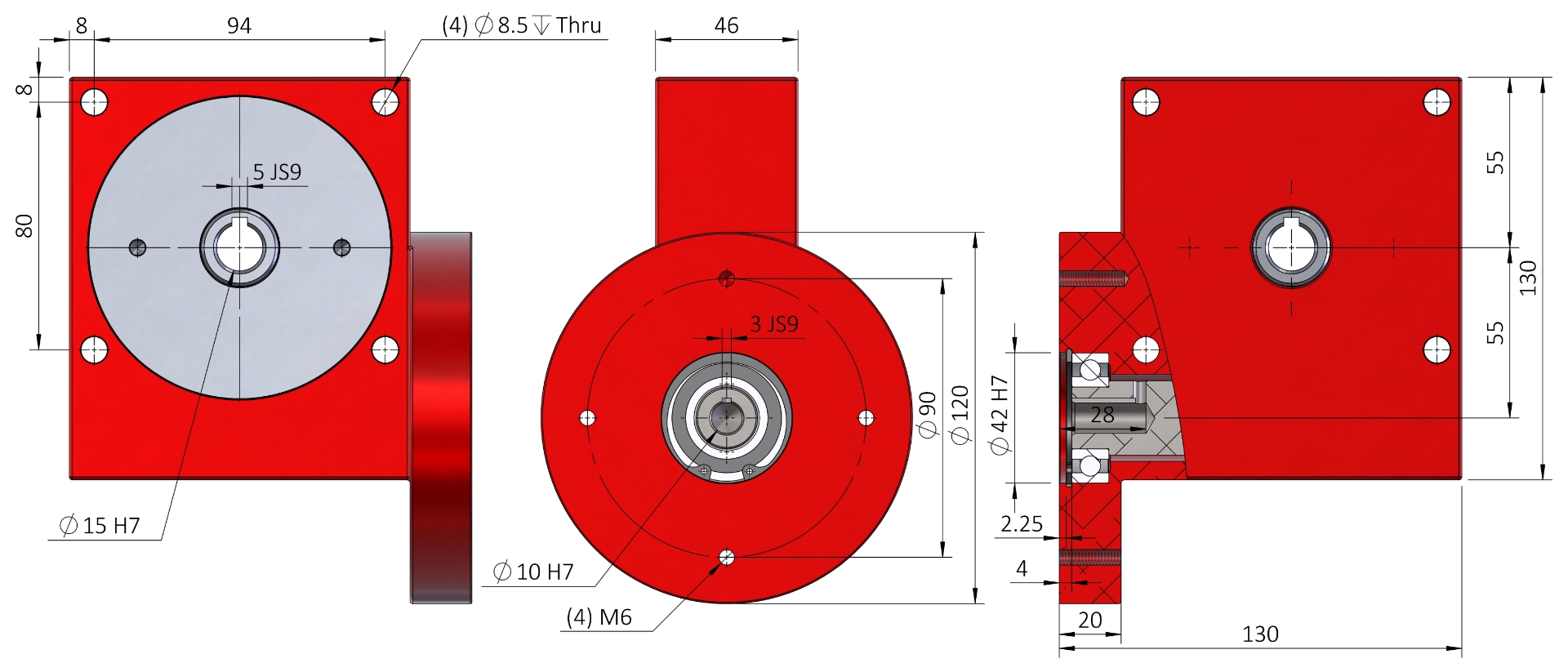

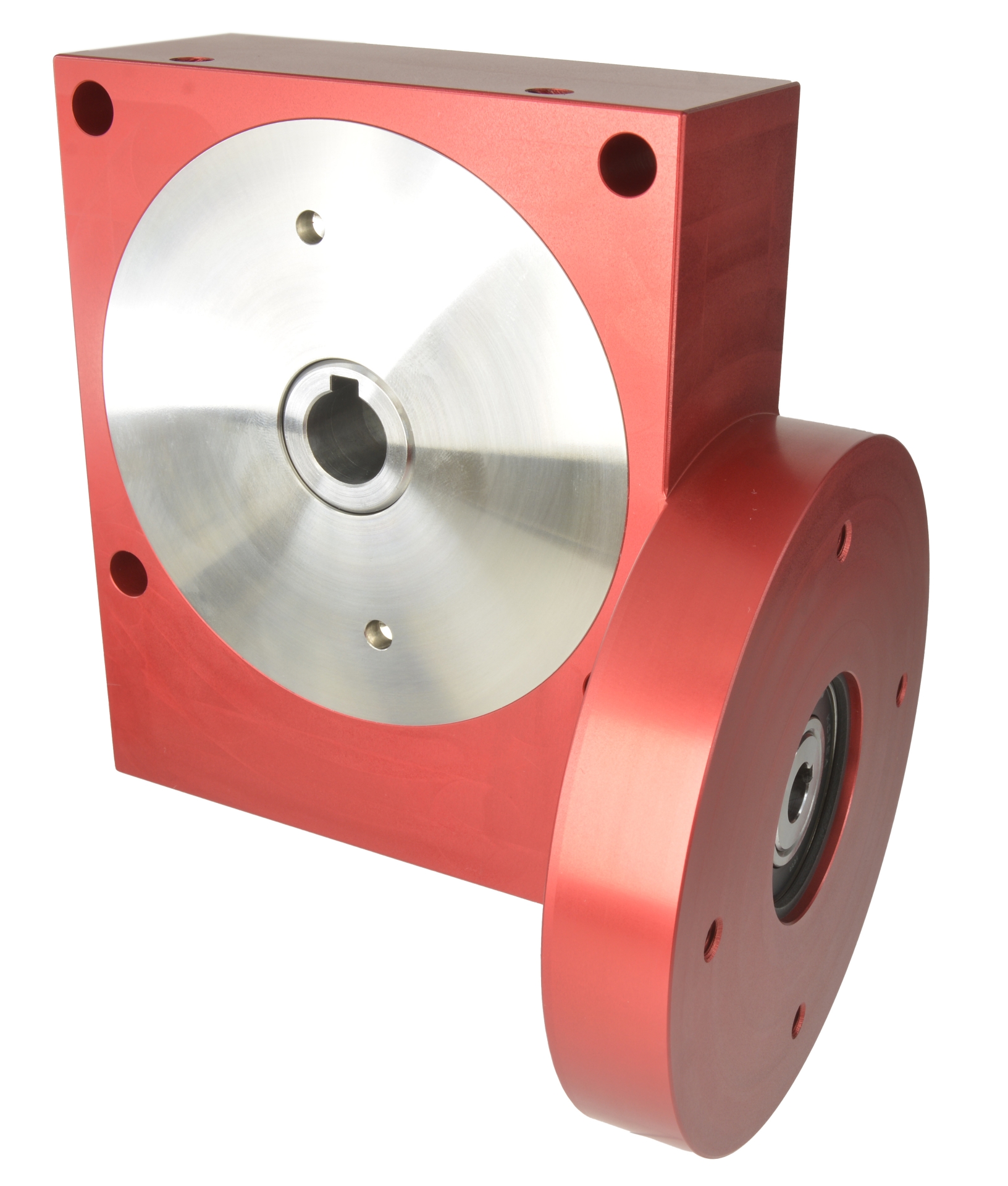

PF55 60Nm 55mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF55-10 | 10:1 | 55.00 | 56 | 21.10 | ≤0.5° |
| PF55-12 | 12:1 | 55.00 | 56 | 22.50 | ≤0.5° |
| PF55-15 | 15:1 | 55.00 | 56 | 23.20 | ≤0.5° |
| PF55-20 | 20:1 | 55.00 | 60 | 24.60 | ≤0.5° |
| PF55-30 | 30:1 | 55.00 | 60 | 25.30 | ≤0.5° |
| PF55-60 | 60:1 | 55.00 | 60 | 28.80 | ≤0.5° |
| PF55-120 | 120:1 | 55.00 | 38 | 25.00 | ≤0.5° |
| PF55-10A | 10:1 | 55.00 | 56 | 21.10 | ≤0.13° |
| PF55-12A | 12:1 | 55.00 | 56 | 22.50 | ≤0.13° |
| PF55-15A | 15:1 | 55.00 | 56 | 23.20 | ≤0.13° |
| PF55-20A | 20:1 | 55.00 | 60 | 24.60 | ≤0.13° |
| PF55-30A | 30:1 | 55.00 | 60 | 25.30 | ≤0.13° |
| PF55-60A | 60:1 | 55.00 | 60 | 28.80 | ≤0.13° |
| PF55-120A | 120:1 | 55.00 | 38 | 25.00 | ≤0.13° |
| PF55-10AR | 10:1 | 55.00 | 56 | 21.10 | ≤0.06° |
| PF55-12AR | 12:1 | 55.00 | 56 | 22.50 | ≤0.06° |
| PF55-15AR | 15:1 | 55.00 | 56 | 23.20 | ≤0.06° |
| PF55-20AR | 20:1 | 55.00 | 60 | 24.60 | ≤0.06° |
| PF55-30AR | 30:1 | 55.00 | 60 | 25.30 | ≤0.06° |
| PF55-60AR | 60:1 | 55.00 | 60 | 28.80 | ≤0.06° |
| PF55-120AR | 120:1 | 55.00 | 38 | 25.00 | ≤0.06° |
