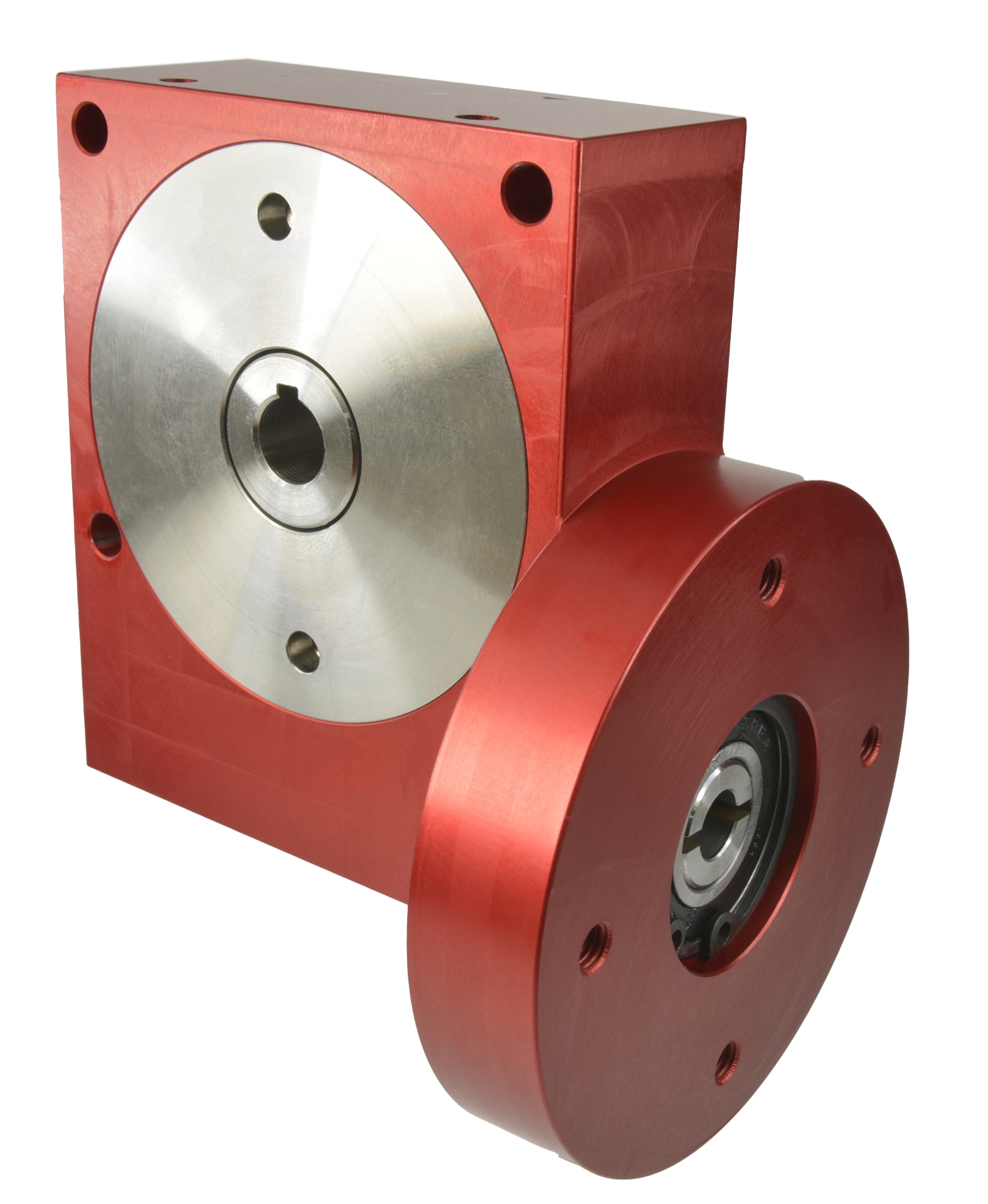

PF40 18Nm 37.5mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF40-10 | 10:1 | 37.50 | 18 | 7.10 | ≤0.5° |
| PF40-12 | 12:1 | 37.50 | 18 | 7.50 | ≤0.5° |
| PF40-15 | 15:1 | 37.50 | 18 | 8.00 | ≤0.5° |
| PF40-20 | 20:1 | 37.50 | 18 | 8.20 | ≤0.5° |
| PF40-30 | 30:1 | 37.50 | 18 | 9.00 | ≤0.5° |
| PF40-60 | 60:1 | 37.50 | 18 | 10.00 | ≤0.5° |
| PF40-120 | 120:1 | 37.50 | 12 | 8.70 | ≤0.5° |
| PF40-10A | 10:1 | 37.50 | 18 | 7.10 | ≤0.13° |
| PF40-12A | 12:1 | 37.50 | 18 | 7.50 | ≤0.13° |
| PF40-15A | 15:1 | 37.50 | 18 | 8.00 | ≤0.13° |
| PF40-20A | 20:1 | 37.50 | 18 | 8.20 | ≤0.13° |
| PF40-30A | 30:1 | 37.50 | 18 | 9.00 | ≤0.13° |
| PF40-60A | 60:1 | 37.50 | 18 | 10.00 | ≤0.13° |
| PF40-120A | 120:1 | 37.50 | 12 | 8.70 | ≤0.13° |
| PF40-10AR | 10:1 | 37.50 | 18 | 7.10 | ≤0.06° |
| PF40-12AR | 12:1 | 37.50 | 18 | 7.50 | ≤0.06° |
| PF40-15AR | 15:1 | 37.50 | 18 | 8.00 | ≤0.06° |
| PF40-20AR | 20:1 | 37.50 | 18 | 8.20 | ≤0.06° |
| PF40-30AR | 30:1 | 37.50 | 18 | 9.00 | ≤0.06° |
| PF40-60AR | 60:1 | 37.50 | 18 | 10.00 | ≤0.06° |
| PF40-120AR | 120:1 | 37.50 | 12 | 8.70 | ≤0.06° |
