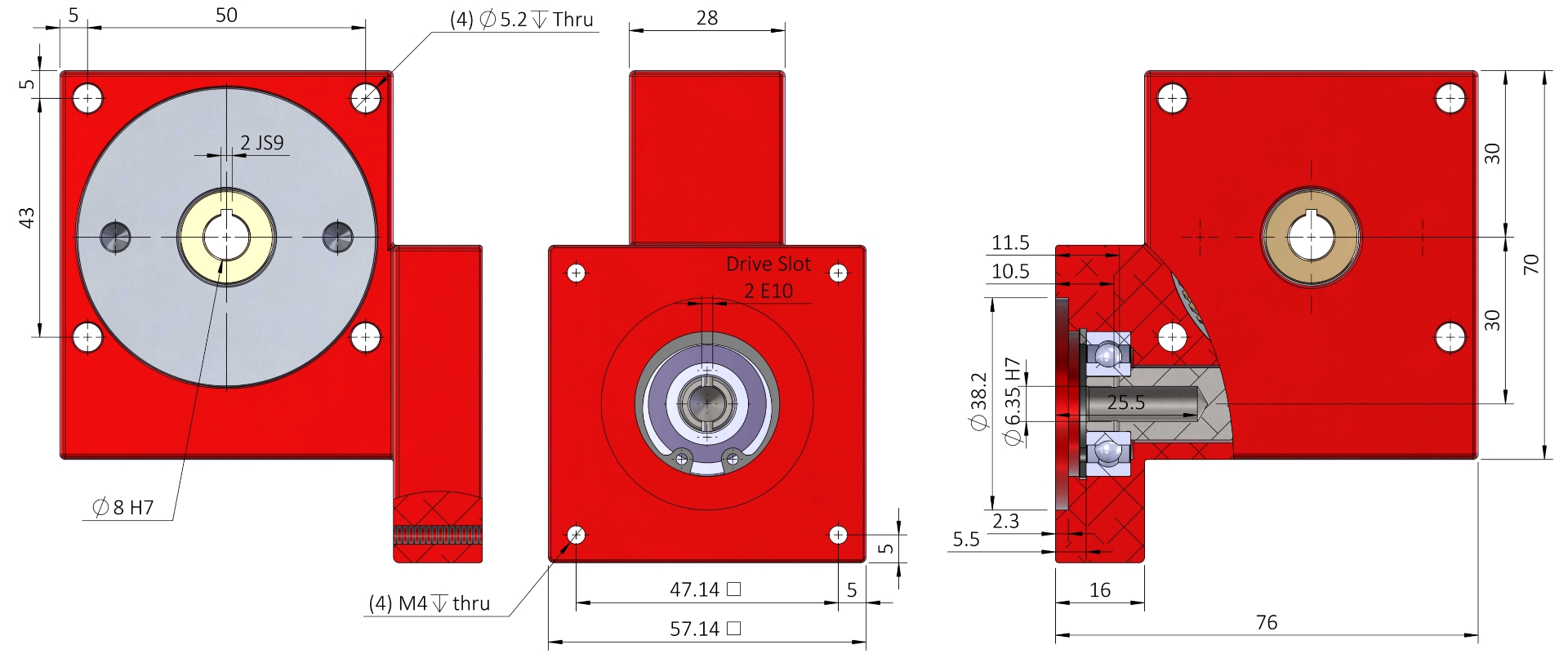

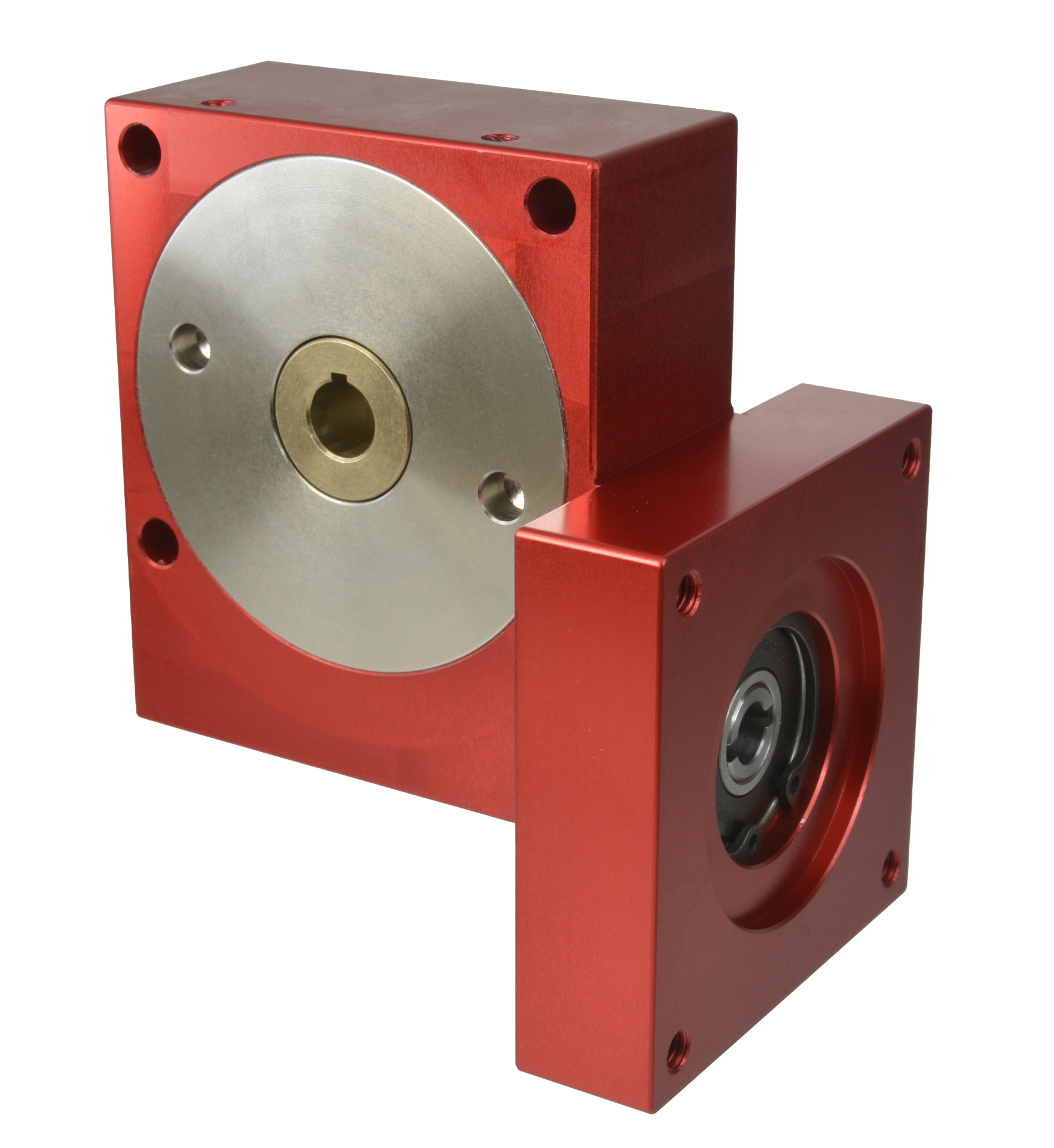

PF30NM 9Nm NEMA 23 30mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF30-10NM | 10:1 | 30.00 | 8 | 3.50 | ≤0.5° |
| PF30-12NM | 12:1 | 30.00 | 8 | 3.70 | ≤0.5° |
| PF30-15NM | 15:1 | 30.00 | 8 | 4.00 | ≤0.5° |
| PF30-20NM | 20:1 | 30.00 | 9 | 4.20 | ≤0.5° |
| PF30-30NM | 30:1 | 30.00 | 9 | 4.50 | ≤0.5° |
| PF30-60NM | 60:1 | 30.00 | 9 | 5.00 | ≤0.5° |
| PF30-120NM | 120:1 | 30.00 | 7 | 4.60 | ≤0.5° |
| PF30-10ANM | 10:1 | 30.00 | 8 | 3.50 | ≤0.13° |
| PF30-12ANM | 12:1 | 30.00 | 8 | 3.70 | ≤0.13° |
| PF30-15ANM | 15:1 | 30.00 | 8 | 4.00 | ≤0.13° |
| PF30-20ANM | 20:1 | 30.00 | 9 | 4.20 | ≤0.13° |
| PF30-30ANM | 30:1 | 30.00 | 9 | 4.50 | ≤0.13° |
| PF30-60ANM | 60:1 | 30.00 | 9 | 5.00 | ≤0.13° |
| PF30-120ANM | 120:1 | 30.00 | 7 | 4.60 | ≤0.13° |
| PF30-10ARNM | 10:1 | 30.00 | 8 | 3.50 | ≤0.06° |
| PF30-12ARNM | 12:1 | 30.00 | 8 | 3.70 | ≤0.06° |
| PF30-15ARNM | 15:1 | 30.00 | 8 | 4.00 | ≤0.06° |
| PF30-30ARNM | 30:1 | 30.00 | 9 | 4.50 | ≤0.06° |
| PF30-60ARNM | 60:1 | 30.00 | 9 | 5.00 | ≤0.06° |
| PF30-120ARNM | 120:1 | 30.00 | 7 | 4.60 | ≤0.06° |
