PF20DU-10

Ondrives Precision Gears and Gearboxes Part number PF20DU-10

PF20DU-10

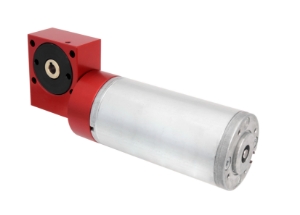

PF20 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 0.50Nm, ratio 10:1
Ondrives Precision Gears and Gearboxes Part number PF20DU-10 Ondrives Precision Gears and Gearboxes Part number PF20DU-10

Product specifications

Centre Dist. [a]20.00
Gear Ratio [i=]10:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input0.50
Efficiency n1 1000 r/min [ηz]86%
Nominal Output Rpm155.0
Rpm at 12V DC1550
DC MotorDUN42x40-24
Mass [kg]0.49
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
