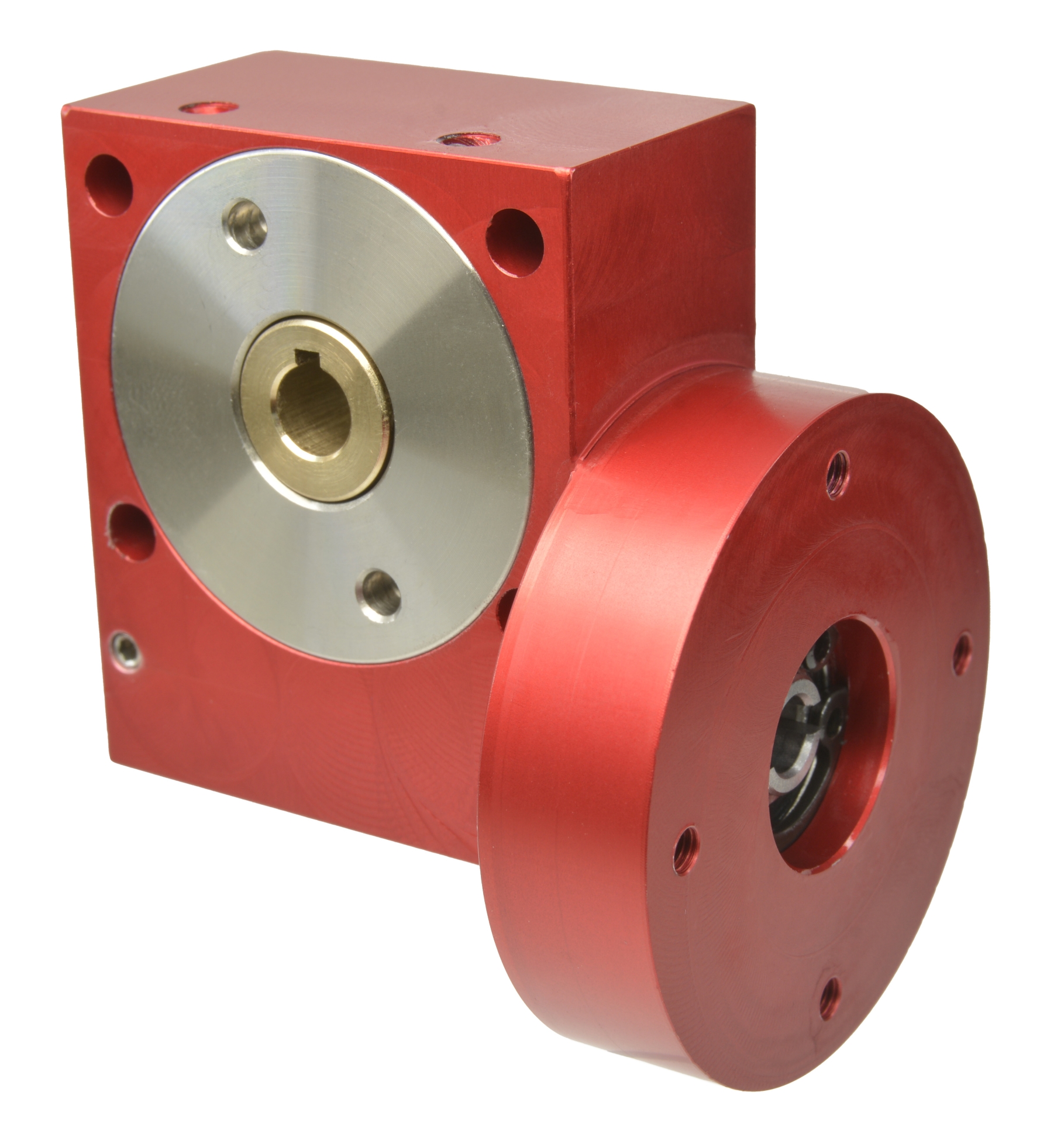

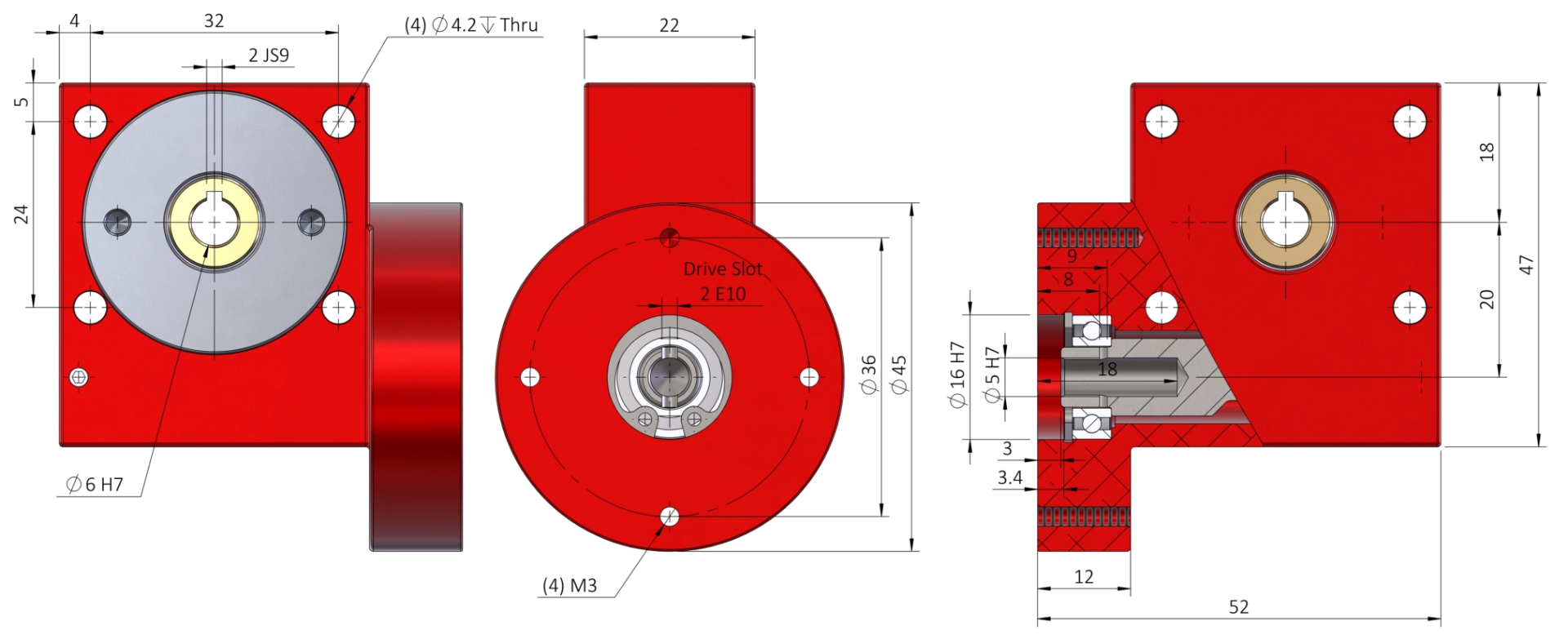

PF20 5Nm 20mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| PF20-10 | 10:1 | 20.00 | 5 | 2.10 | ≤0.5° |
| PF20-12 | 12:1 | 20.00 | 5 | 2.30 | ≤0.5° |
| PF20-15 | 15:1 | 20.00 | 5 | 2.30 | ≤0.5° |
| PF20-20 | 20:1 | 20.00 | 5 | 2.50 | ≤0.5° |
| PF20-30 | 30:1 | 20.00 | 5 | 2.70 | ≤0.5° |
| PF20-60 | 60:1 | 20.00 | 5 | 2.90 | ≤0.5° |
| PF20-120 | 120:1 | 20.00 | 3 | 1.70 | ≤0.5° |
| PF20-10A | 10:1 | 20.00 | 5 | 2.10 | ≤0.13° |
| PF20-12A | 12:1 | 20.00 | 5 | 2.30 | ≤0.13° |
| PF20-15A | 15:1 | 20.00 | 5 | 2.30 | ≤0.13° |
| PF20-20A | 20:1 | 20.00 | 5 | 2.50 | ≤0.13° |
| PF20-30A | 30:1 | 20.00 | 5 | 2.70 | ≤0.13° |
| PF20-60A | 60:1 | 20.00 | 3 | 2.90 | ≤0.13° |
| PF20-120A | 120:1 | 20.00 | 5 | 1.70 | ≤0.13° |
| PF20-10AR | 10:1 | 20.00 | 5 | 2.10 | ≤0.06° |
| PF20-12AR | 12:1 | 20.00 | 5 | 2.30 | ≤0.06° |
| PF20-15AR | 15:1 | 20.00 | 5 | 2.30 | ≤0.06° |
| PF20-20AR | 20:1 | 20.00 | 5 | 2.50 | ≤0.06° |
| PF20-30AR | 30:1 | 20.00 | 5 | 2.70 | ≤0.06° |
| PF20-60AR | 60:1 | 20.00 | 5 | 2.90 | ≤0.06° |
| PF20-120AR | 120:1 | 20.00 | 3 | 1.70 | ≤0.06° |
