PF60-12A

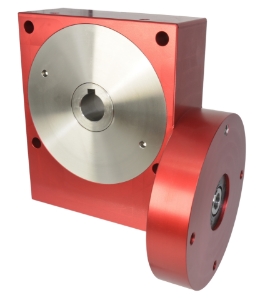

Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

PF60-12A

Precision worm gear reducer, ≤8' backlash, flanged input, 20mm output bore & 12mm input bore, 31.0Nm-114.0Nm output torque, 64mm centres, ratio 12:1
Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]64.00
Gear Ratio [i=]12:1
Output Torque T₂max [Nm]115
Output Torque T₂n [Nm]47.00
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)3.68 x 10-5
Efficiency n1 1000 r/min [ηz]89%
Mass [kg]5.1
Max. Output Radial Load Fr2 N700
Max. Output Axial Load Fa2 N500
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]64.00
Gear Ratio [i=]12:1
Output Torque T₂max [Nm]115
Output Torque T₂n [Nm]47.00
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)3.68 x 10-5
Efficiency n1 1000 r/min [ηz]89%
Mass [kg]5.1
Max. Output Radial Load Fr2 N700
Max. Output Axial Load Fa2 N500
Lubrication GreaseShell Gadus S5 V42P 2.5
