PF55-120

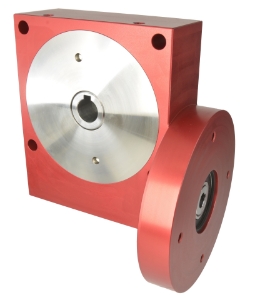

Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

PF55-120

Precision worm gear reducer, ≤30' backlash, flanged input, 15mm output bore & 10mm input bore, 18.00Nm-38.00Nm output torque, 55mm centres, ratio 120:1
Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]55.00
Gear Ratio [i=]120:1
Output Torque T₂max [Nm]38
Output Torque T₂n [Nm]25.00
Output Backlash j≤0.5°
Reflected Inertia at Input (kg•m²)1.57 x 10-5
Efficiency n1 1000 r/min [ηz]47%
Mass [kg]3.04
Max. Output Radial Load Fr2 N600
Max. Output Axial Load Fa2 N450
Lubrication GreaseShell Gadus S5 V42P 2.5
