PF40DU-15

Ondrives Precision Gears and Gearboxes Part number PF40DU-15

PF40DU-15

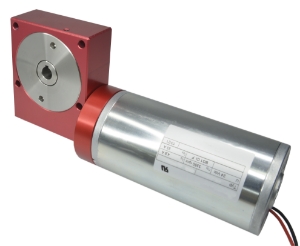

PF40 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 4.0Nm, ratio 15:1
Ondrives Precision Gears and Gearboxes Part number PF40DU-15 Ondrives Precision Gears and Gearboxes Part number PF40DU-15 Ondrives Precision Gears and Gearboxes Part number PF40DU-15

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]15:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input4.0
Efficiency n1 1000 r/min [ηz]85%
Nominal Output Rpm112
Rpm at 12V DC1675
DC MotorDUN63x55-24
Mass [kg]1.7
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]15:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input4.0
Efficiency n1 1000 r/min [ηz]85%
Nominal Output Rpm112
Rpm at 12V DC1675
DC MotorDUN63x55-24
Mass [kg]1.7
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
