PF40-60

PF40-60

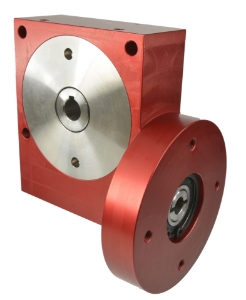

Precision worm gear reducer, ≤30' backlash, flanged input, 10mm output bore & 8mm input bore, 7.20Nm-18.00Nm output torque, 37.5mm centres, ratio 60:1

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]60:1
Output Torque T₂max [Nm]18
Output Torque T₂n [Nm]10.00
Output Backlash j≤0.5°
Reflected Inertia at Input (kg•m²)3.27 x 10-6
Efficiency n1 1000 r/min [ηz]65%
Mass [kg]1.15
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
