PF40-12ARNM

PF40-12ARNM

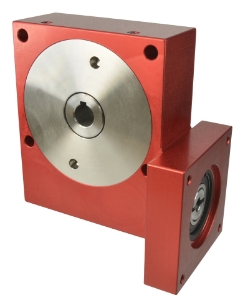

Precision worm gear reducer, ≤4' backlash, Nema 23 flanged input, 10mm output bore & 6.35mm input bore, 5.20Nm-17.60Nm output torque, ratio 12:1

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]12:1
Output Torque T₂max [Nm]18
Output Torque T₂n [Nm]7.50
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)3.26 x 10-6
Efficiency n1 1000 r/min [ηz]87%
Mass [kg]1.15
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
