PF30DU-120
PF30DU-120

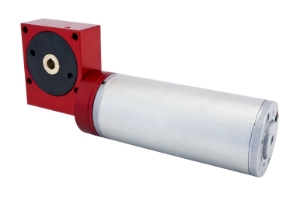

PF30 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 4.0Nm, ratio 120:1
Product specifications
Centre Dist. [a]
30.00
Gear Ratio [i=]
120:1
Output Backlash j
≤0.5°
Nm Output at 1550 Rpm Input
4.0
Efficiency n1 1000 r/min [ηz]
40%
Nominal Output Rpm
12
Rpm at 12V DC
1500
DC Motor
DUN53x58-24
Mass [kg]
1.16
Working Temp Range
-20°C ~ +85°C
Max. Housing Temperature (°C)
85
Starting Voltage (V)
1
Specifications
Product PDF
Overview
Product specifications
Centre Dist. [a]
30.00
Gear Ratio [i=]
120:1
Output Backlash j
≤0.5°
Nm Output at 1550 Rpm Input
4.0
Efficiency n1 1000 r/min [ηz]
40%
Nominal Output Rpm
12
Rpm at 12V DC
1500
DC Motor
DUN53x58-24
Mass [kg]
1.16
Working Temp Range
-20°C ~ +85°C
Max. Housing Temperature (°C)
85
Starting Voltage (V)
1
