PF30DU-10A
PF30DU-10A

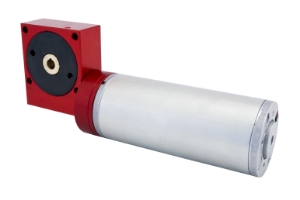

PF30 precision worm gear reducer fitted with 24v DC motor, ≤8' backlash, 1.7Nm, ratio 10:1
Product specifications
Centre Dist. [a]
30.00
Gear Ratio [i=]
10:1
Output Backlash j
≤0.13°
Nm Output at 1550 Rpm Input
1.7
Efficiency n1 1000 r/min [ηz]
90%
Nominal Output Rpm
150
Rpm at 12V DC
1500
DC Motor
DUN53x58-24
Mass [kg]
1.16
Working Temp Range
-20°C ~ +85°C
Max. Housing Temperature (°C)
85
Starting Voltage (V)
1
Specifications
Product PDF
Overview
Product specifications
Centre Dist. [a]
30.00
Gear Ratio [i=]
10:1
Output Backlash j
≤0.13°
Nm Output at 1550 Rpm Input
1.7
Efficiency n1 1000 r/min [ηz]
90%
Nominal Output Rpm
150
Rpm at 12V DC
1500
DC Motor
DUN53x58-24
Mass [kg]
1.16
Working Temp Range
-20°C ~ +85°C
Max. Housing Temperature (°C)
85
Starting Voltage (V)
1
