PF30-12A

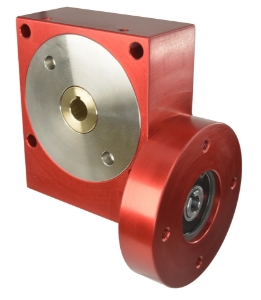

Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

PF30-12A

Precision worm gear reducer, ≤8' backlash, flanged input, 8mm output bore & 6mm input bore, 2.50Nm-8.00Nm output torque, 30mm centres, ratio 12:1
Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]12:1
Output Torque T₂max [Nm]8
Output Torque T₂n [Nm]3.70
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)9.25 x 10-7
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.59
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N120
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]30.00
Gear Ratio [i=]12:1
Output Torque T₂max [Nm]8
Output Torque T₂n [Nm]3.70
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)9.25 x 10-7
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.59
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N120
Lubrication GreaseShell Gadus S5 V42P 2.5
