PF20DU-20A
PF20DU-20A

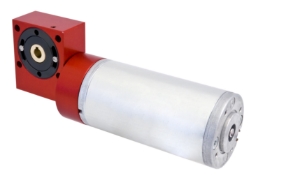

PF20 precision worm gear reducer fitted with 24v DC motor, ≤8' backlash, 1.10Nm, ratio 20:1
Product specifications
Centre Dist. [a]
20.00
Gear Ratio [i=]
20:1
Output Backlash j
≤0.13°
Efficiency n1 1000 r/min [ηz]
78%
Nm Output at 1550 Rpm Input
1.10
Nominal Output Rpm
77.5
Rpm at 12V DC
1550
DC Motor
DUN42x40-24
Mass [kg]
0.49
Working Temp Range
-20°C ~ +85°C
Max. Housing Temperature (°C)
85
Starting Voltage (V)
1
Specifications
Product PDF
Overview
Product specifications
Centre Dist. [a]
20.00
Gear Ratio [i=]
20:1
Output Backlash j
≤0.13°
Efficiency n1 1000 r/min [ηz]
78%
Nm Output at 1550 Rpm Input
1.10
Nominal Output Rpm
77.5
Rpm at 12V DC
1550
DC Motor
DUN42x40-24
Mass [kg]
0.49
Working Temp Range
-20°C ~ +85°C
Max. Housing Temperature (°C)
85
Starting Voltage (V)
1
