PF20DU-20

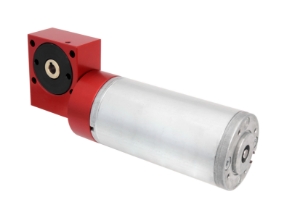

Ondrives Precision Gears and Gearboxes Part number PF20DU-20

PF20DU-20

PF20 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 1.10Nm, ratio 20:1
Ondrives Precision Gears and Gearboxes Part number PF20DU-20 Ondrives Precision Gears and Gearboxes Part number PF20DU-20

Product specifications

Centre Dist. [a]20.00
Gear Ratio [i=]20:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input1.10
Efficiency n1 1000 r/min [ηz]78%
Nominal Output Rpm77.5
Rpm at 12V DC1550
DC MotorDUN42x40-24
Mass [kg]0.49
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]20.00
Gear Ratio [i=]20:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input1.10
Efficiency n1 1000 r/min [ηz]78%
Nominal Output Rpm77.5
Rpm at 12V DC1550
DC MotorDUN42x40-24
Mass [kg]0.49
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
