PF20DU-12A

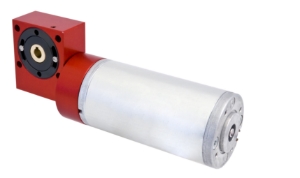

Ondrives Precision Gears and Gearboxes Part number PF20DU-12A

PF20DU-12A

PF20 precision worm gear reducer fitted with 24v DC motor, ≤8' backlash, 0.70Nm, ratio 12:1
Ondrives Precision Gears and Gearboxes Part number PF20DU-12A Ondrives Precision Gears and Gearboxes Part number PF20DU-12A

Product specifications

Centre Dist. [a]20.00
Gear Ratio [i=]12:1
Output Backlash j≤0.13°
Nm Output at 1550 Rpm Input0.70
Efficiency n1 1000 r/min [ηz]85%
Nominal Output Rpm129.0
Rpm at 12V DC1550
DC MotorDUN42x40-24
Mass [kg]0.49
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
