PF15-10AR

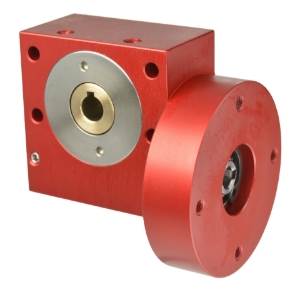

Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes

PF15-10AR

Precision worm gear reducer, ≤4' backlash, flanged input, 6mm output bore & 5mm Input bore, 1.20Nm-3.68Nm output torque, 15mm centres, ratio 10:1
Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox bore input interface with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox bore input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]15.00
Gear Ratio [i=]10:1
Output Torque T₂max [Nm]3.5
Output Torque T₂n [Nm]1.73
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)1.68 x 10-7
Efficiency n1 1000 r/min [ηz]84%
Mass [kg]0.21
Max. Output Radial Load Fr2 N80
Max. Output Axial Load Fa2 N30
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Centre Dist. [a]15.00
Gear Ratio [i=]10:1
Output Torque T₂max [Nm]3.5
Output Torque T₂n [Nm]1.73
Output Backlash j≤0.06°
Reflected Inertia at Input (kg•m²)1.68 x 10-7
Efficiency n1 1000 r/min [ηz]84%
Mass [kg]0.21
Max. Output Radial Load Fr2 N80
Max. Output Axial Load Fa2 N30
Lubrication GreaseShell Gadus S5 V42P 2.5
