P80 116.3Nm 65.5mm-Centres

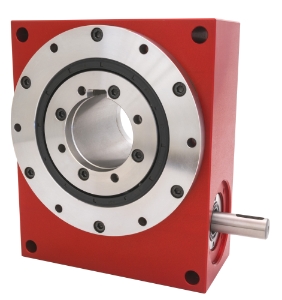

P80-16A
P80-16A
IP65 Precision Wormwheel Reducer with High Capacity Taper Roller Bearings. <6' low backlash, ratio 16:1
Product specifications
Centre Dist. [a]
65.50
Gear Ratio [i=]
16.667:1
Output Torque T₂max [Nm]
120
Output Torque T₂n [Nm]
55.90
Output Backlash j
≤0.1°
Efficiency
68%
Reflected Inertia at Input (kg•m²)
4.51 x 10-5
Mass [kg]
8.86
Max. Input Radial Load Fr1 N
250
Max. Output Radial Load Fr2 N
2000
Max. Output Axial Load Fa2 N
5000
Lubrication Grease
Shell Gadus S5 V42P 2.5
Specifications
Product PDF
Technical
Overview
Product specifications
Centre Dist. [a]
65.50
Gear Ratio [i=]
16.667:1
Output Torque T₂max [Nm]
120
Output Torque T₂n [Nm]
55.90
Output Backlash j
≤0.1°
Efficiency
68%
Reflected Inertia at Input (kg•m²)
4.51 x 10-5
Mass [kg]
8.86
Max. Input Radial Load Fr1 N
250
Max. Output Radial Load Fr2 N
2000
Max. Output Axial Load Fa2 N
5000
Lubrication Grease
Shell Gadus S5 V42P 2.5
