Gearboxes & Reducers
Wormwheel Gearboxes Shaft-Input
P80 116.3Nm 65.5mm-Centres

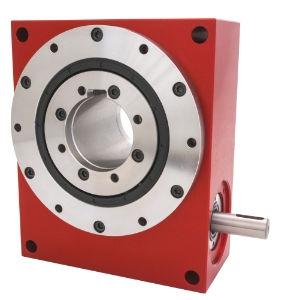

P80-12AR
P80-12AR
IP65 Precision Wormwheel Reducer with High Capacity Taper Roller Bearings. <4' reduced backlash, ratio 12:1
Product specifications
Centre Dist. [a]
65.50
Gear Ratio [i=]
12.5:1
Output Torque T₂max [Nm]
120
Output Torque T₂n [Nm]
54.20
Output Backlash j
≤0.06°
Efficiency
73%
Reflected Inertia at Input (kg•m²)
5.10 x 10-5
Mass [kg]
8.86
Max. Input Radial Load Fr1 N
250
Max. Output Radial Load Fr2 N
2000
Max. Output Axial Load Fa2 N
5000
Lubrication Grease
Shell Gadus S5 V42P 2.5
Specifications
Product PDF
Technical
Overview
Product specifications
Centre Dist. [a]
65.50
Gear Ratio [i=]
12.5:1
Output Torque T₂max [Nm]
120
Output Torque T₂n [Nm]
54.20
Output Backlash j
≤0.06°
Efficiency
73%
Reflected Inertia at Input (kg•m²)
5.10 x 10-5
Mass [kg]
8.86
Max. Input Radial Load Fr1 N
250
Max. Output Radial Load Fr2 N
2000
Max. Output Axial Load Fa2 N
5000
Lubrication Grease
Shell Gadus S5 V42P 2.5
