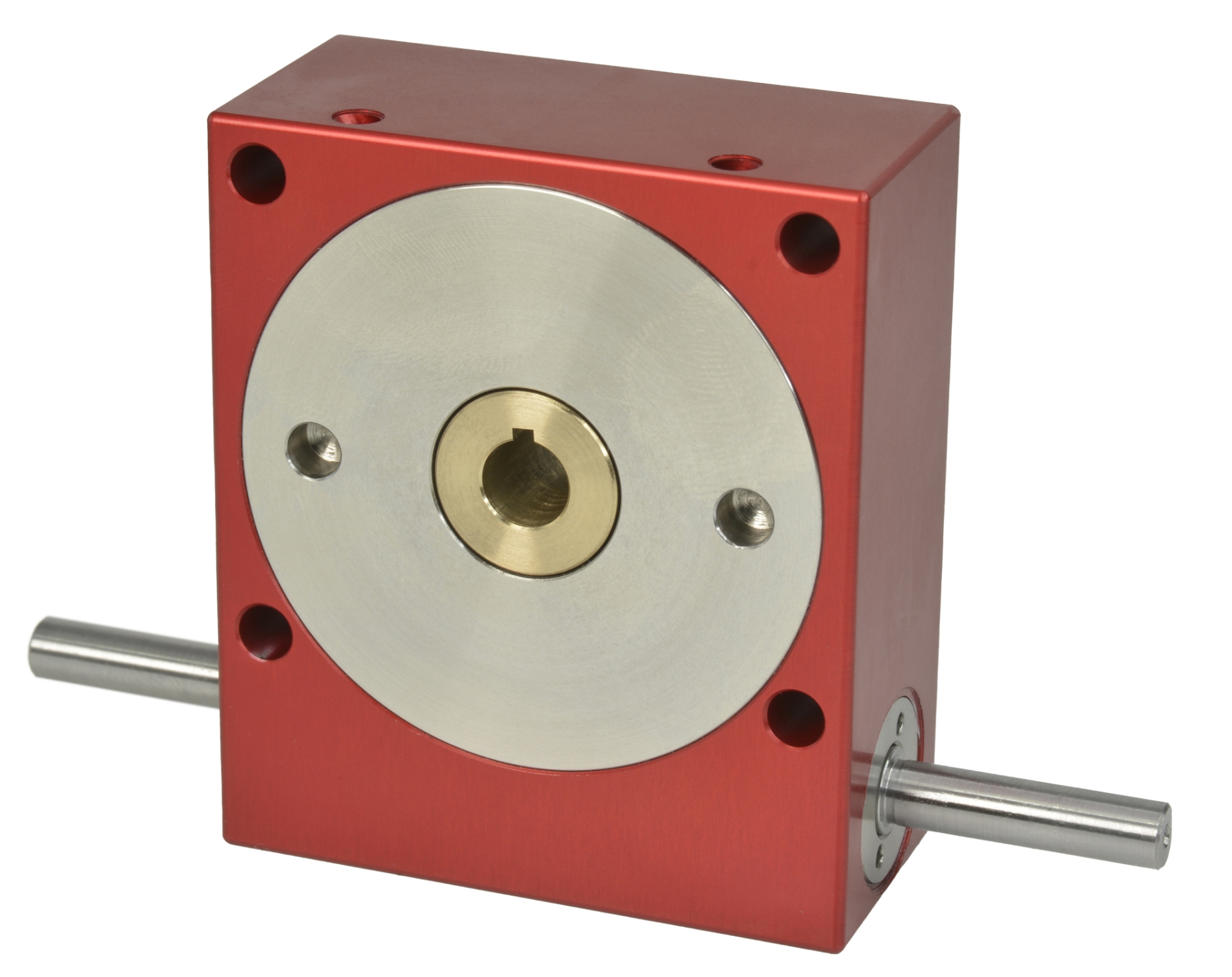

P30 9Nm 30mm-Centres
Precision Worm Wheel Reducers
Manufactured by Ondrives in the UK
| Sku (Part No.) | Gear Ratio [i=] | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|
| P30-10 | 10:1 | 30.00 | 8 | 3.50 | ≤0.5° |
| P30-12 | 12:1 | 30.00 | 8 | 3.70 | ≤0.5° |
| P30-15 | 15:1 | 30.00 | 8 | 4.00 | ≤0.5° |
| P30-20 | 20:1 | 30.00 | 9 | 4.20 | ≤0.5° |
| P30-30 | 30:1 | 30.00 | 9 | 4.50 | ≤0.5° |
| P30-60 | 60:1 | 30.00 | 9 | 5.00 | ≤0.5° |
| P30-120 | 120:1 | 30.00 | 7 | 4.60 | ≤0.5° |
| P30-10A | 10:1 | 30.00 | 8 | 3.50 | ≤0.13° |
| P30-12A | 12:1 | 30.00 | 8 | 3.70 | ≤0.13° |
| P30-15A | 15:1 | 30.00 | 8 | 4.00 | ≤0.13° |
| P30-20A | 20:1 | 30.00 | 9 | 4.20 | ≤0.13° |
| P30-30A | 30:1 | 30.00 | 9 | 4.50 | ≤0.13° |
| P30-60A | 60:1 | 30.00 | 9 | 5.00 | ≤0.13° |
| P30-120A | 120:1 | 30.00 | 7 | 4.60 | ≤0.13° |
| P30-10AR | 10:1 | 30.00 | 8 | 3.50 | ≤0.06° |
| P30-12AR | 12:1 | 30.00 | 8 | 3.70 | ≤0.06° |
| P30-15AR | 15:1 | 30.00 | 8 | 4.00 | ≤0.06° |
| P30-20AR | 20:1 | 30.00 | 9 | 4.20 | ≤0.06° |
| P30-30AR | 30:1 | 30.00 | 9 | 4.50 | ≤0.06° |
| P30-60AR | 60:1 | 30.00 | 9 | 5.00 | ≤0.06° |
| P30-120AR | 120:1 | 30.00 | 7 | 4.60 | ≤0.06° |
