P15-13A

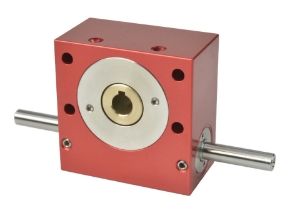

Precision worm gear reducer, <8' backlash, shaft input, 6mm output bore & 5mm input shaft, 1.28Nm-3.68Nm output torque, 15mm centres, ratio 13.33:1

Product specifications

Centre Dist. [a]	15.00
Gear Ratio [i=]	13.33:1
Output Torque T₂max [Nm]	3.5
Output Torque T₂n [Nm]	1.88
Output Backlash j	≤0.13°
Reflected Inertia at Input (kg•m²)	1.65 x 10-7
Efficiency n1 1000 r/min [ηz]	78%
Mass [kg]	0.15
Max. Input Radial Load Fr1 N	10
Max. Output Radial Load Fr2 N	80
Max. Output Axial Load Fa2 N	30
Lubrication Grease	Shell Gadus S5 V42P 2.5
