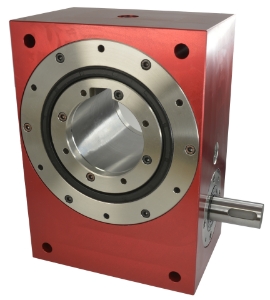

P85-44AR

IP65 Precision Wormwheel Reducer with High Capacity Taper Roller Bearings. <4' reduced backlash, ratio 44:1

Product specifications

Centre Dist. [a]	85.00
Gear Ratio [i=]	44:1
Output Torque T₂max [Nm]	300
Output Torque T₂n [Nm]	200.00
Output Backlash j	≤0.06°
Efficiency n1 1000 r/min [ηz]	73%
Reflected Inertia at Input (kg•m²)	4.005 x 10-3
Mass [kg]	20.70
Max. Input Radial Load Fr1 N	900
Max. Output Radial Load Fr2 N	2500
Max. Output Axial Load Fa2 N	7000
Lubrication Grease	KLUBERSYNTH GE 46-1200

Centre Dist. [a]	85.00
Gear Ratio [i=]	44:1
Output Torque T₂max [Nm]	300
Output Torque T₂n [Nm]	200.00
Output Backlash j	≤0.06°
Efficiency n1 1000 r/min [ηz]	73%
Reflected Inertia at Input (kg•m²)	4.005 x 10-3
Mass [kg]	20.70
Max. Input Radial Load Fr1 N	900
Max. Output Radial Load Fr2 N	2500
Max. Output Axial Load Fa2 N	7000
Lubrication Grease	KLUBERSYNTH GE 46-1200
