P45-20AR

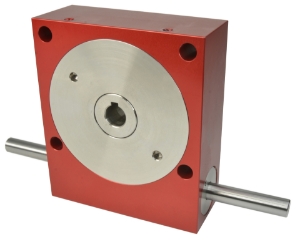

Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes

P45-20AR

Precision worm gear reducer, ≤4' backlash, shaft input, 12mm output bore & 10mm input shaft, 12.20Nm-40.00Nm output torque, 45.5mm centres, ratio 20:1

Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Drawing of Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]	45.50
Gear Ratio [i=]	20:1
Output Torque T₂max [Nm]	40
Output Torque T₂n [Nm]	17.10
Output Backlash j	≤0.06°
Reflected Inertia at Input (kg•m²)	4.11 x 10-6
Efficiency n1 1000 r/min [ηz]	85%
Mass [kg]	1.7
Max. Input Radial Load Fr1 N	60
Max. Output Radial Load Fr2 N	450
Max. Output Axial Load Fa2 N	300
Lubrication Grease	Shell Gadus S5 V42P 2.5
