P40-60A

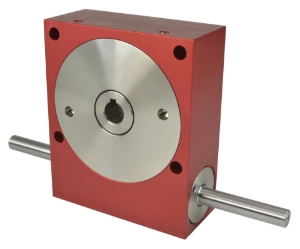

Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes

P40-60A

Precision worm gear reducer, ≤8' backlash, shaft input, 10mm output bore & 8mm input shaft, 7.20Nm-18.00Nm output torque, 37.5mm centres, ratio 60:1
Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes Wormwheel gearbox low backlash shaft input with bore output made by Ondrives Precision Gears and Gearboxes Drawing of Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Wormwheel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]60:1
Output Torque T₂max [Nm]18
Output Torque T₂n [Nm]10.00
Output Backlash j≤0.13°
Reflected Inertia at Input (kg•m²)2.15 x 10-6
Efficiency n1 1000 r/min [ηz]65%
Mass [kg]0.92
Max. Input Radial Load Fr1 N100
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
