OKSD50-22X26

Ondrives Precision Gears and Gearboxes Part number OKSD50-22X26

OKSD50-22X26

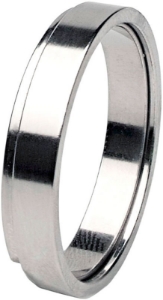

ETG 100 High Strength Steel Locking Element for Low and Middle Torque, Fixing Flange Required
Ondrives Precision Gears and Gearboxes Part number OKSD50-22X26 Ondrives Precision Gears and Gearboxes Part number OKSD50-22X26

Product specifications

Diameter [B]22
Diameter [D]26
Torque (Nm)66
Dimension [L]6.3
Dimension [L1]5.3
Shaft Pw N/mm²135
Hub Pn (N/mm²)115
Tension Fa N36,000
Mass [kg]0.0072

Product specifications

Diameter [B]22
Diameter [D]26
Torque (Nm)66
Dimension [L]6.3
Dimension [L1]5.3
Shaft Pw N/mm²135
Hub Pn (N/mm²)115
Tension Fa N36,000
Mass [kg]0.0072
